Download Data Sheet
Back to iGraze family
Product Reference
Environment Outdoor
Installation Ceiling Surface,Floor Surface,Wall Surface
Construction & Materials
Housing -
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish White
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material -
Cooling Technique Passive Cooling
Optical System
Beam Direction -
Tilt -
Swivel -
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz -
Control Gear -
Mounting Remote
LED Power Watts 25W/Mtr
System Power Watts -
Operating Voltage Vin -
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD high power
LED Fitted -
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI

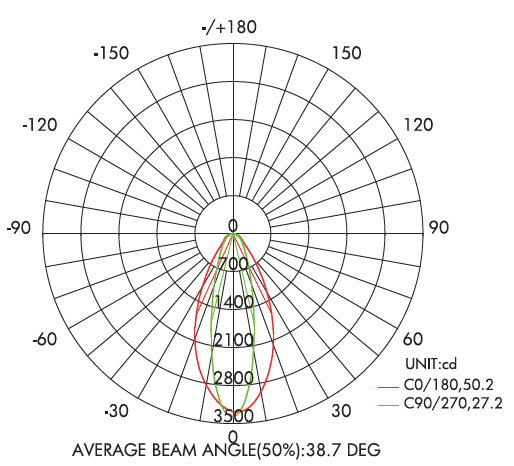

Light Distribution
IES Files
Ordering Details
Code Example:
Select one from each column with highlighted values to create the ordering code
